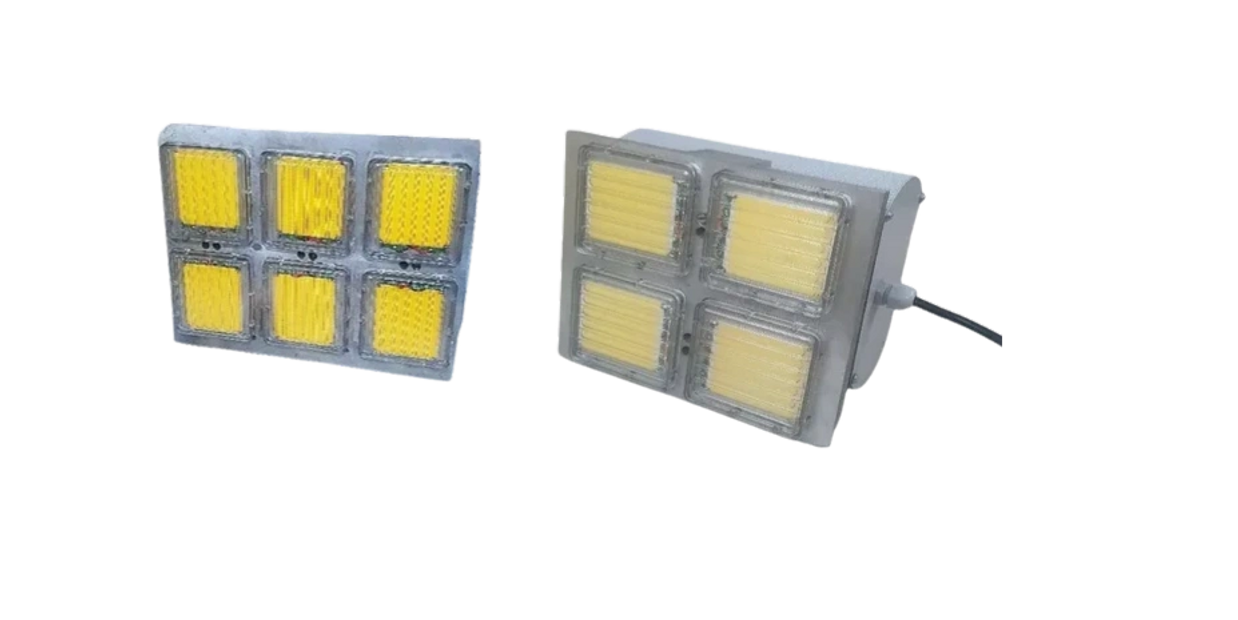

Industrial LED Lamp

---

Operating Electrical Specification

Power : 100 / 200 / 300 / 400 W

Input Voltage ( nominal ) : 230 + /- 15%

Input Voltage  ( Range ) : 150- 330 V AC

Over Voltage protection : 440 V - 4 Hrs

Surge Protection : 6 KV

Ingress Protection : IP 65

Operating Temp Range : -20 to 60 Deg C

Operating Lighting Specification

Lumen Out put : 130- 140 Lm / watt

Beam Angle : 90 / 120

Correlated Color Temperature (Nom): 6500

other CCT - 2700-4000-5500 available on request

Optical cover type :  Unbreakable PC Lens with superior transparency

• High performance , most reliable Formula Matrix LED Technology
• Designed for long usage hours.
• Simple but most efficient heat dissipation system.
• Mounting accessories like C bracket , "I" bolt or hanging cable available
• User friendly modular lamps giving flexibility to adopt the application requirement
• Solution for a wide range of applications like
• Industrial Workshop, Heat process workshops , Heavy Engineering High roof Height Workshops
• Outdoor lighting , Street lights, High Mast lighting ,
• Sports complex, outdoor lawns ,
• Parking lots , Billboards etc.

Formula Matrix LED is designed for most efficient heat flow directly in the FIXTURE. This is highly efficient due to Excellent Thermal Conductivity of Ceramic base simultaneously providing excellent Electrical Insulation

A series of chips are scientifically mounted on a optimal size ceramic pad in terms of a formula matrix array with suitable power intensity. Large surface area ensures active cooling and optimized power through each chip ensure efficient passive cooling. MOST RELIABLE, SUSTAINED and OPTIMIZED light output is ensured through this simple but effective thermal management,

Modular Product Design offers flexibility to adopt to the customer specific requirements

Mounting arrangements , lamp wattage, Lighting Designs to achieve different LUX levels as per requirements

COTACT US / WRITE US FOR MORE DETAILS.
